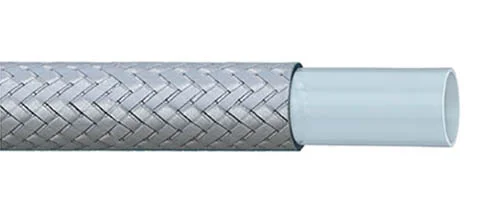

PH179 - R14
Core : Sintered tube of polytetrafluoroethylene (P.T.F.E)
Reinforcement : Single braid of 304 series of stainless steel wire
Application :
P.T.F.E hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in application
| ITEM CODE | DASH SIZE | WT | ID | OD | WP | BP | BR/r | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | g/m | |||
| PH179-3 | -3 | 1 | 1/8 | 3.35 | 0.252 | 6.4 | 3,260 | 225 | 13,040 | 900 | 1.6 | 40 | 65 |
| PH179-4 | -4 | 0.75 | 3/16 | 4.83 | 0.3 | 7.6 | 3,000 | 210 | 12,000 | 840 | 2 | 50 | 84 |
| PH179-5 | -5 | 0.65 | 1/4 | 6.48 | 0.38 | 9.7 | 3,000 | 210 | 12,000 | 840 | 3 | 75 | 121 |
| PH179-6 | -6 | 0.75 | 5/16 | 8 | 0.44 | 11.2 | 2,500 | 175 | 10,000 | 700 | 4 | 100 | 163 |
| PH179-7 | -7 | 0.75 | 3/8 | 9.65 | 0.495 | 12.6 | 2,400 | 165 | 9,600 | 660 | 5 | 125 | 170 |
| PH179-8 | -8 | 0.75 | 13/32 | 10.41 | 0.543 | 13.8 | 2,000 | 140 | 8,000 | 560 | 5.3 | 135 | 185 |
| PH179-10 | -10 | 0.75 | 1/2 | 12.83 | 0.65 | 16.5 | 1,750 | 120 | 7,000 | 480 | 6.5 | 165 | 234 |
| PH179-12 | -12 | 0.9 | 5/8 | 16 | 0.78 | 19.8 | 1,270 | 88 | 5,080 | 352 | 8 | 200 | 318 |
| PH179-14 | -14 | 0.9 | 3/4 | 19.18 | 0.9 | 22.9 | 1,100 | 75 | 4,400 | 300 | 9.1 | 230 | 395 |
| PH179-16 | -16 | 1 | 7/8 | 22.23 | 1.03 | 26.2 | 900 | 62 | 3,600 | 248 | 9.1 | 230 | 462 |
| PH179-18 | -18 | 1.05 | 1 | 25.53 | 1.16 | 29.5 | 900 | 62 | 3,600 | 248 | 11.8 | 300 | 528 |
| PH179-20 | -20 | 1.2 | 1.1/8 | 28.58 | 1.3 | 33 | 630 | 44 | 2,520 | 176 | 16.1 | 410 | 585 |
Temperature Range: Continuous: -54°C to +260°C
Double braided available for higher performance, please check our part # PH381
