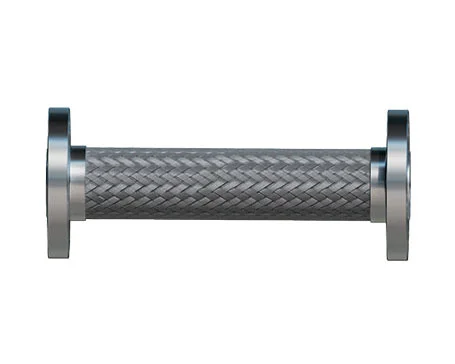

Flexible Flange Pump Connector
Hose Material : SS304 , SS316L & SS321
Hose Series : 2300 HFH
Braid Material : SS304 & SS316L
Type of Braid : Single Braid
Size : DN 50 to DN 300
End Fitting : Fixed Flange
End Fitting Material : MS
End Fitting Dim : As per B16.5 #150
Length : As per customer requirement Heavy Duty
Application :Individual box with Weight Balancing Stiffener
Packing : #300, #600 Flange
Optional : Double Braid, Swivel Flange
| HOSE ID (INCH) | PART NO | *OAL (INCH) | *LIVE LENGTH (INCH) | *FITTING LENGTH (EACH END) | WORKING PRESSURE @70°F PSI |
|---|---|---|---|---|---|
| 2'' | PC-050-FF | 9'' | 5.3/4'' | 5/8'' | 465 |
| 2.1/2'' | PC-065-FF | 9'' | 5.3/4'' | 5/8'' | 435 |
| 3'' | PC-080-FF | 9'' | 5.3/4'' | 5/8'' | 363 |
| 4'' | PC-100-FF | 9'' | 5.3/4'' | 5/8'' | 275 |
| 5'' | PC-125-FF | 11'' | 7.1/2'' | 3/4'' | 203 |
| 6'' | PC-150-FF | 11'' | 7.1/2'' | 3/4'' | 145 |
| 8'' | PC-200-FF | 12'' | 8'' | 1'' | 116 |
| 10'' | PC-250-FF | 13'' | 9'' | 1'' | 108 |
| 12'' | PC-300-FF | 14'' | 10'' | 1'' | 87 |
